E56 Flat Ultra Thin Rotary Encoder For Car Central Control

E56 系列规格书

1.一般事项

1-1 适用规格

本规格书适用于电子设备用微小电流回路56型回转式编码器。

1-2 标准状态

除另有规定外，测量应在以下状态下进行：

温度：15°C to 35°C

相对湿度：25% to 85%

气压：86kPa to 106kPa

1-3 工作温度范围：-20°C to 80°C

1-4 储存温度范围：-40°C to 85°C

2.构造

2-1 尺寸

见所附成品图

3.额定值

3-1 额定电压: DC 5V

3-2 最大额定电流(阻抗负载)：10mA (1mA MIN)

4.使用上的事项

4-1 避免储藏于高温,潮湿及腐蚀的场所. 产品购入后尽可能在6个月内使用完. 拆包装后未使用完的剩余产品需储藏于防潮防毒的环境下.

4-2 编码器信号的计算方法应将操作的速度,信号的取样时间及电子回路中的微电脑软体等考虑进去.

4-3 在设计时要考虑到杂讯,建议使用C/R滤波电路.

4-4 本产品请勿碰触到水,可能会导致输出波形的异常.

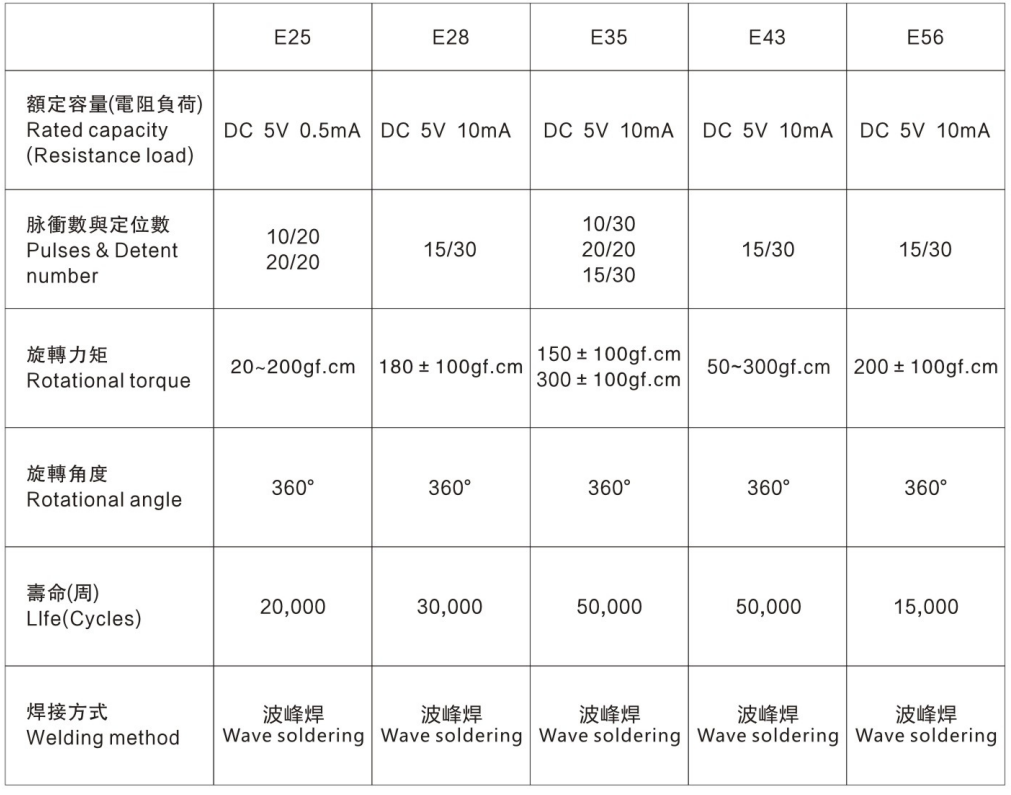

电气性能

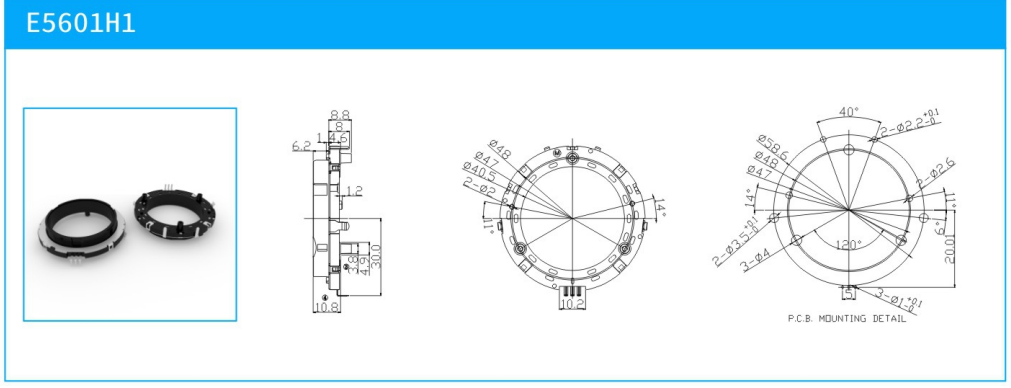

外形尺寸

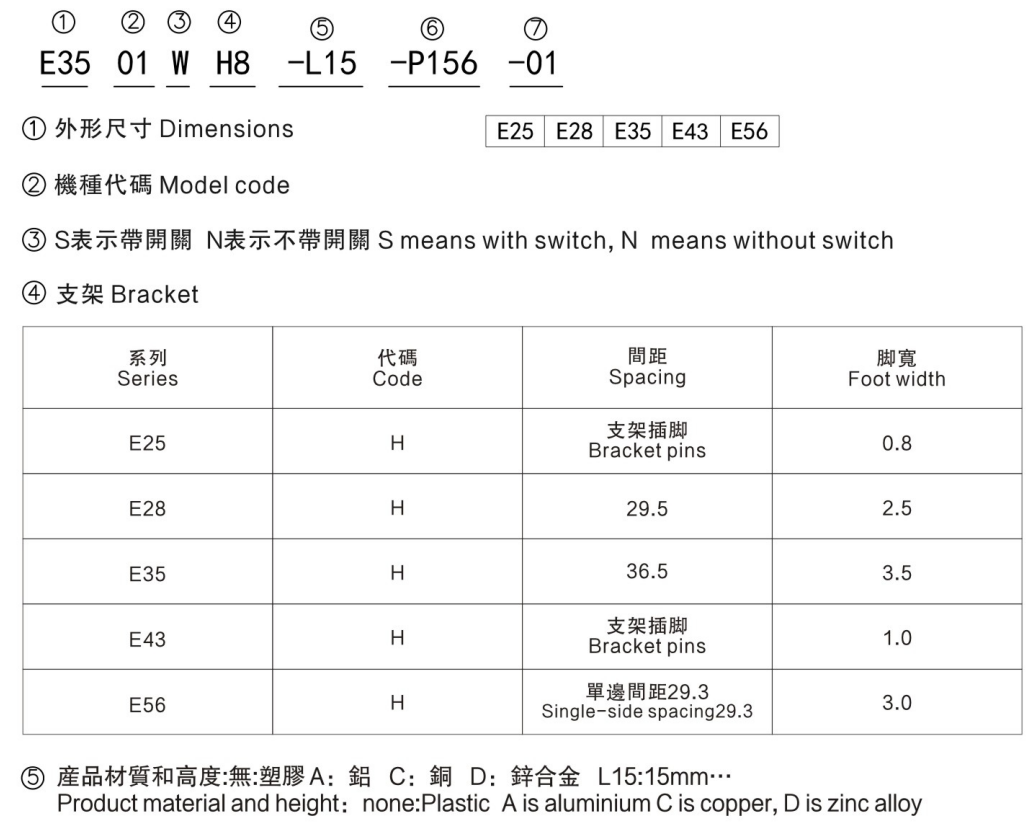

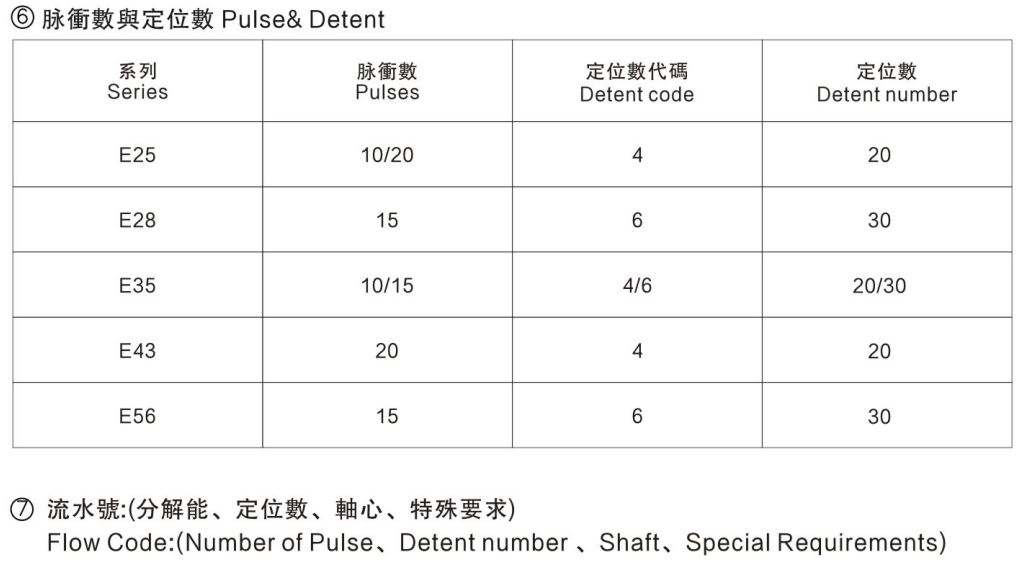

Keywords:

Hollow Encoder

E35 E35 Car Audio Hollow Shaft Incremental Rotary Encoder

E56 Flat Ultra Thin Rotary Encoder For Car Central Control

Dongguan Tianqian Electronics Co., Ltd. was established in 2013 and is a wholly-owned subsidiary of Guangdong Tianqian Group. So far, there are many companies under its banner: Hong Kong Tianyu Electronic Technology Co., Ltd., Dongguan Tianyu Electronic Technology Co., Ltd., Guangdong Tianhao Electronic Technology Co., Ltd., Henan Tianqian Electronic Technology Co., Ltd. Electronics. Dongguan Tiangan's business areas include: aviation models, electronic toys, game consoles, car audio and video, power tools, smart homes, computer peripherals, communication facilities, medical facilities and equipment, adjustable lighting, instruments and other switches, encoder products , is a national high-tech enterprise integrating research, production, production and sales.

tq@tianqiandz.com

+86-13902648085

Classification:

Hollow Encoder

Product Consulting Related Products File Download

Product Consulting

Note: Please leave your contact information and our professionals will contact you as soon as possible!

Submit

Related Products

There is no relevant data for the time being, please add it backstage!

SQ40-0204-17 Potentiometer Switch

SQ25-0205-17 Durable Guitar Switch

The role of the durable guitar switch in the guitar system is crucial. It not only directly affects the switching of the tone, but also plays a key role in the convenience of playing and the diversity of sound effects. First of all, it allows the player to choose different pickup combinations or switch tone modes. Through simple operation, the user can instantly adjust the sound quality of the guitar to meet the needs of various musical styles.

SS25

Dongguan Terwin's existing plant covers an area of 40,000 m², with more than 40 semi-automatic and fully automatic integrated assembly machines, and multiple assembly and processing production lines. The implementation and operation of the ERP system have penetrated into every corner of the company. From personnel dressing to production management, from material selection to quality control, it provides a reliable guarantee for the production of high-quality products.

SS25 Volume Control 25mm Slide Changerover Switch

Request Quote

Mobile: +86-13902648085

Email: tq@tianqiandz.com

Whatsapp: +86-13902648085

website: www.tianqiandz.com

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

COOKIES

required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

Request Quote

Powerby:300.cn | Tag | City List | Privacy Policy

Business License

项目	条件		规格
输出信号	注意事项：输出信号方式是2个定位1个脉冲。在定位点位置时A-C端子处于ON或OFF状态，而B-C端子间不作特定要求。		卡点位置如下图所示:(虚线表示带卡点装置的上擎子处位置。)
	轴回转方向	信号	输出波形图1
	顺时针方向	A(Terminal A-C)
		A( A-C端子间)
		B(Terminal B-C)
		B( B-C端子间)
	逆时针方向	A(Terminal A-C)
		A( A-C端子间)
		B(Terminal B-C)
		B( B-C端子间)
